* The parameters and datasheets below can only be applied to 3849-PV-S5 series.

8MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera
* The parameters and datasheets below can only be applied to 3849-PV-S5 series.
> 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.

Model: IPC-HDW3849H-AS-PV /3849-PV-S5 series

1.Camera ：
Image Sensor ：1/2.7" CMOS
Max. Resolution ：3840(H) × 2160 (V)
ROM ：256 MB
RAM ：2 G
Scanning System ：Progressive
Electronic Shutter Speed ：Auto/Manual 1/3 s–1/100,000 s
Min. Illumination ：0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on)
S/N Ratio ：> 56 dB
Illumination Distance ：Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control ：Auto/Manual
Illuminator Number ：1 (IR LED); 1 (Warm light)
Pan/Tilt/Rotation Range ：Pan: 0°–360°;Tilt: 0°–78°;Rotation: 0°–360°

2.Lens ：
Lens Type ：Fixed-focal
Mount Type ：M12
Focal Length ：2.8 mm; 3.6 mm
Max. Aperture ：F1.0
Field of View ：2.8 mm: H: 106°; V: 55°; D: 125° ; 3.6 mm: H: 85; V: 45°; D: 102°
Iris Type ：Fixed
Close Focus Distance ：2.8 mm: 1.5 m (4.9 ft);3.6 mm: 2.2m (7.2 ft)

3.Professional, intelligent ：
IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD:SMD 4.0
AcuPick:Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA:Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search:Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

4.Video ：
Video Compression ：H.265; H.264; H.264H; H.264B; MJPEG(only supported by the sub stream)
Smart Codec ：Smart H.265+/Smart H.264+
AI Coding:
AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%)
Video Frame Rate ：
Main stream:3840 × 2160 @(1–25/30 fps);3840 × 2160 @(1–25/30 fps with AI function disabled);sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps);third stream:1280 × 1080 @ (1–25/30 fps)
Stream Capability ：3 streams
Resolution ：8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control ：CBR/VBR
Video Bit Rate ：H.264: 32 kbps–8192 kbps;H.265: 12 kbps–8192 kbps
Day/Night ：Color/B/W
BLC ：Yes
HLC ：Yes
WDR ：120 dB
Scene Self-adaptation (SSA) ：Yes
White Balance ：Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control ：Auto/Manual
Noise Reduction ：3D NR
Motion Detection ：OFF/ON (4 areas)
Region of Interest (RoI) ：Yes (4 areas)
Smart Illumination ：Yes
Image Rotation ：0°/90°/180°/270° (Support with 1920 × 1080 resolution and lower)
Mirror ：Yes
Privacy Masking ：4 areas

5.Audio ：
Built-in MIC ：Yes
Audio Compression ：PCM, G.711a, G.711Mu, G726

6.Alarm ：
Alarm Event ：No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception

7.Network ：
Network ：RJ-45 (10/100 Base-T)
SDK and API ：Yes
Protocol ：IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security ：Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability ：ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host ：20 (Total bandwidth: 80 M)
Storage ：FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser ：IE: IE8 and later/Chrome/Safari: Safari 12 and later/Firefox
Management Software ：Smart PSS; DSS; DMSS
Mobile Phone ：IOS; Android

8.Certification ：
Certification ：CE-LVD: EN62368-1;CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B

9.Port ：
Audio Input ：1 channel (RCA port)
Audio Output ：1 channel (RCA port)
Alarm Input ：1 channel in: 5mA 3V–5V DC
Alarm Output ：1 channel out: 300mA 12V DC

10.Power ：
Power Supply ：12V DC/PoE (802.3af)
Power Consumption ：Basic: 4.5 W (12 VDC); 5.8 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.6 W (12 VDC); 10.1 W (PoE)

11.Environment ：
Operating Conditions ：–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Conditions ：–40°C to +60°C (–40°F to +140°F)
Protection Grade ：IP67

12.Structure ：
Casing ：Metal

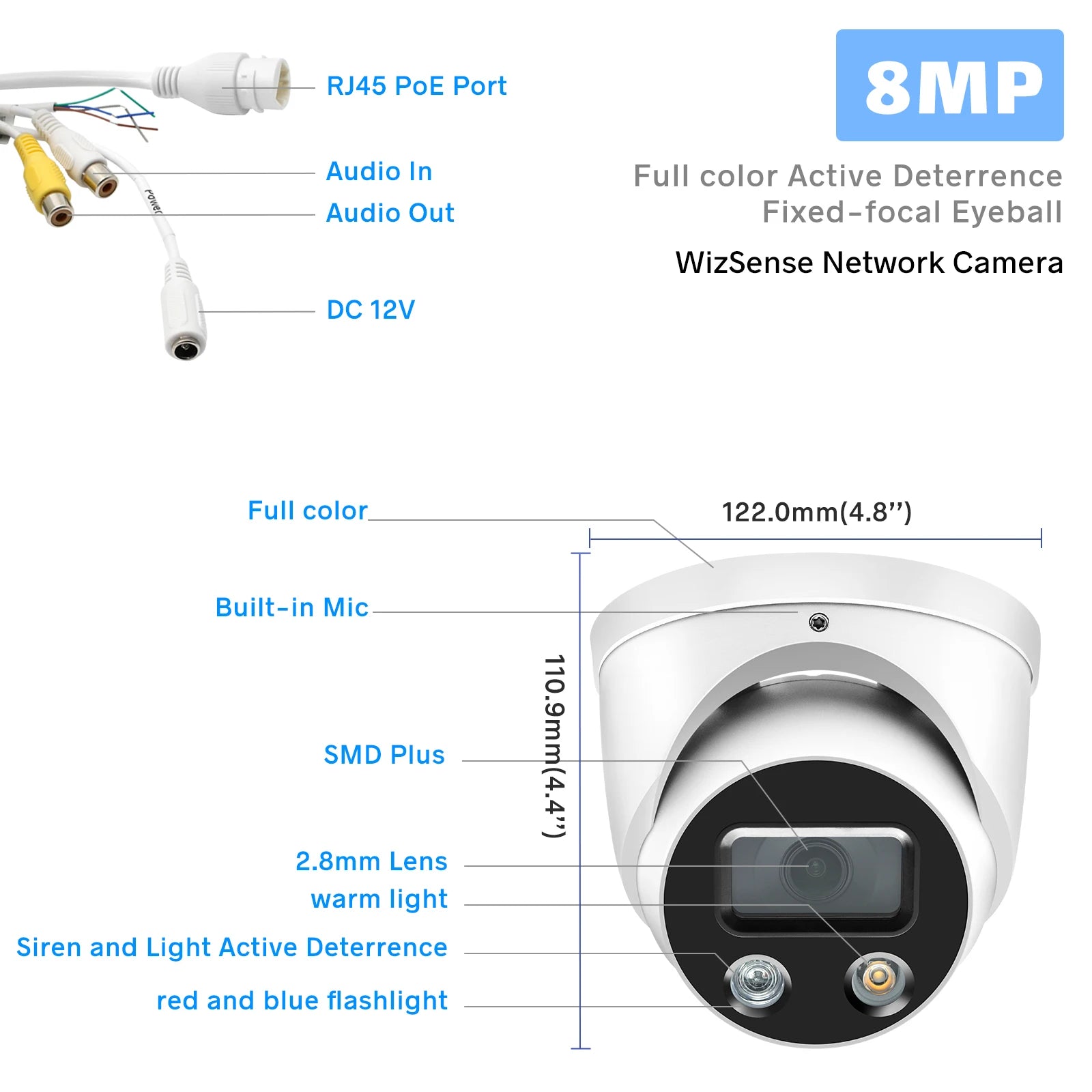

Dimensions ：Φ122.0 mm × 110.9 mm(4.80" × Φ4.37")
Net Weight ： 0.75 kg (1.65 lb)
Gross Weight ：0.92 kg (2.03 lb)

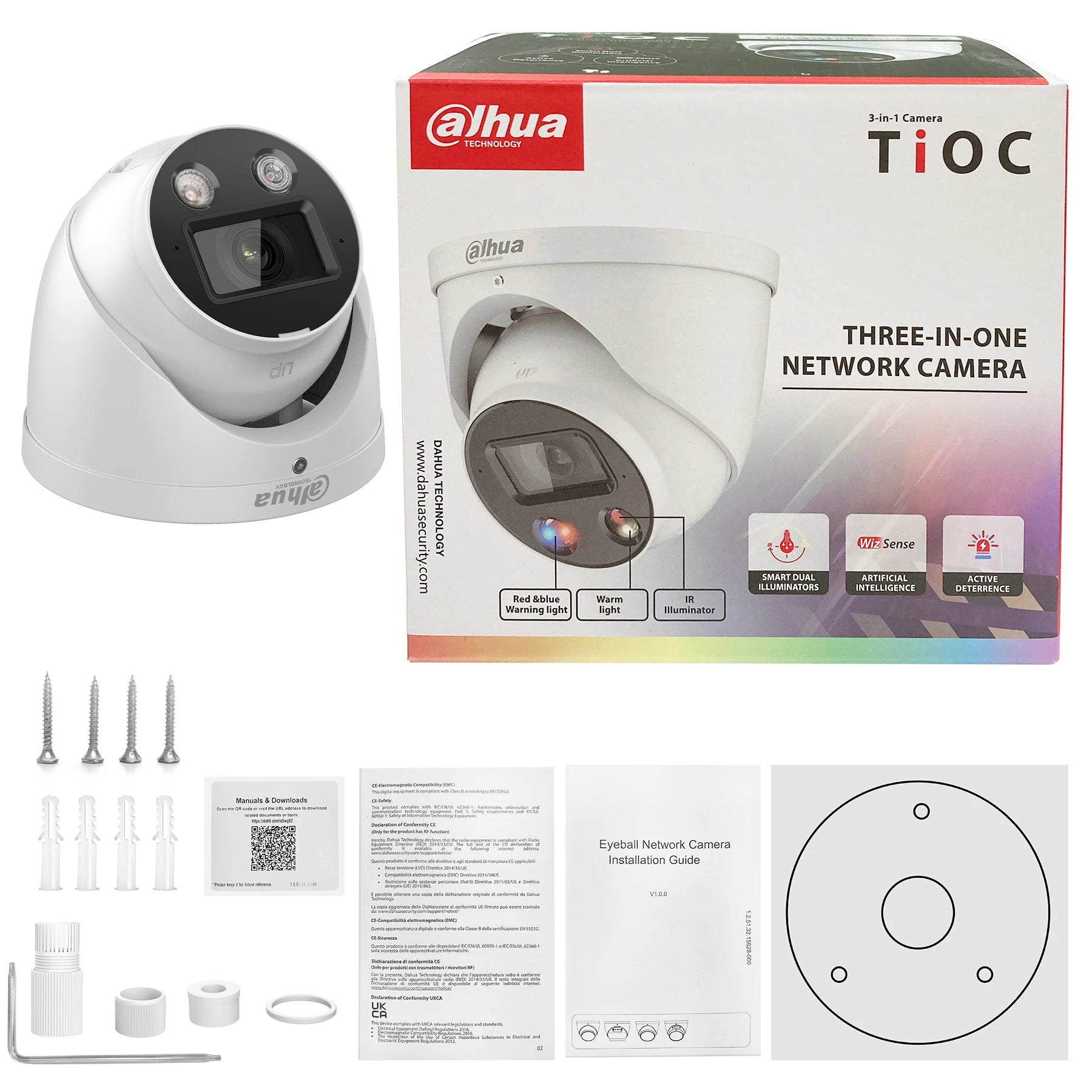

Packing-List :

1. 1x 8 mp IP Camera IPC-HDW3849H-AS-PV S5 Version
2. 1x User manual .
3. 1x Waterproof plug .
4. Installation tool .
5. 1x screws bag.
6. 1x Drill Template .
